Survey of Lands
Accurate information on nature, extent and potential of soil resources is essential for optimal utilization of the resource for sustainable development. Study of soil resources at large scale mapping using Satellite Imagery has proved to be quite useful as it reduces time and man power required when compared to gathering information through ground surveys.
Objective:- Accurate mapping of THB and DILL lands.
- Integration with existing land records.
- Prevention of encroachment and unauthorized use.
- Efficient land management and allocation.
- Enhanced transparency and public access.

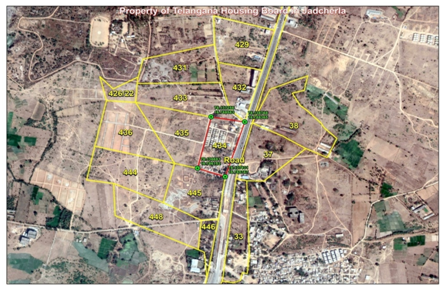

Telangana Housing Board
User Department:Telangana Housing Board

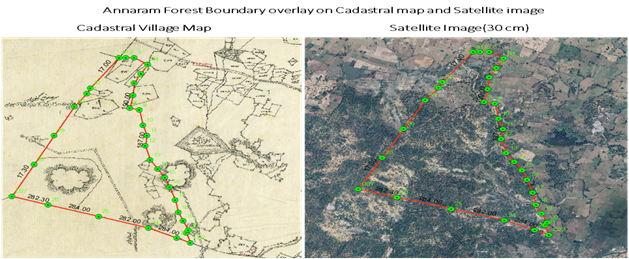

Survey and demarcation of the boundaries of the notified Forest Blocks/ Forest Lands/ forest areas diverted/ CA lands received/ deemed forests/ encroachments/ RoFR Act, 2006 titles/ activities taken up/ important wildlife corridors/ core, buffer and eco-sensitive zones of Protected Areas. Prepare & Supply geo-referenced maps along with report consisting of all the readings and photograph at each Boundary Pillar as evidence for above in GIS usable format (e00 format) in Geographic Coordinate System - WGS84 datum and in UTM Projection – WGS84 datum of the respective Zone, certified by concerned departments viz., Forest, Revenue, SSLR, Tribal Welfare. The Telangana State Government has initiated a groundbreaking project to demarcate and consolidate forest land boundaries, leveraging cutting-edge survey technologies.
Objective:- Accurate identification and mapping of forest land boundaries.
- Prevention of encroachment and illegal activities.
- Protection of biodiversity and ecosystem.
- Sustainable forest management.
- Integration with national-level forest mapping initiatives.
Forest Department, Govt.of Telangana
User Department:Forest Department, Govt.of Telangana

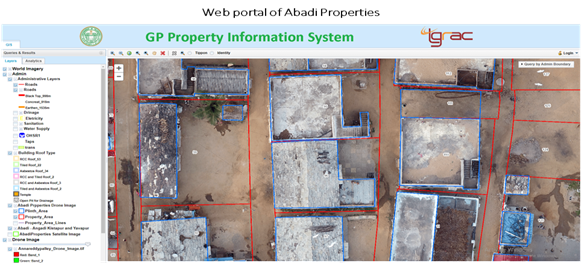

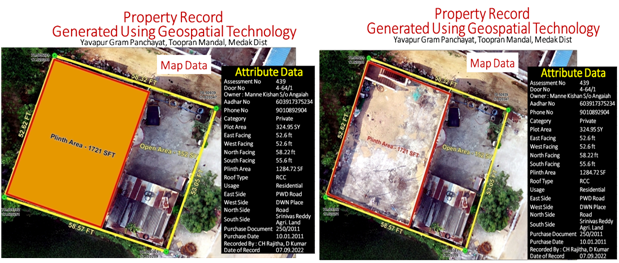

Abadi area would be mapped by using drones, to generate high resolution and accurate maps to confer ownership property rights. To understand the quality of output data and interpretation capabilities of mapping and generating dimensions of each individual building in Abadi and Extended Ababi / Gramakantam. The implementation of citizen charter and protection of citizen rights are the inherent aims. The output of the survey provides the details of each and every house in the Abadi and extended Abadi and categorizes the types of occupation, residential, ownership, extent and Plinth Area occupied. This work has done for 2 GPs as a pilot study (Angadi Kistapur GP, Siddipet District & Yavapur GP, Medak District).
Objective:Understand the quality of output data and interpretation capabilities of mapping and generating dimensions of each individual building in Abadi and Extended Ababi / Gramakantam. The implementation of citizen charter and protection of citizen rights are the inherent aims. Abadi survey provides the details of each and every house in the Abadi and extended Abadi and categorizes the types of occupation, residential, ownership, extent and Plinth Area occupied
Sponsoring Agency:Panchayat Raj and Rural Employment
User Department:Panchayat Raj and Rural Employment
Monitoring the developmental activities of Madhira Assembly Constituency using geospatial technologies involves leveraging satellite imagery, geographic information systems (GIS), and remote sensing to track progress and identify areas for improvement.
Objective:
- Enhance Decision-Making: Provide accurate and timely data to support informed decision-making on development projects and resource allocation.
- Track Progress: Monitor the status of ongoing projects, identifying successes and challenges.
- Identify Gaps: Detect areas requiring attention, ensuring equitable distribution of resources.
- Improve Resource Allocation: Optimize resource utilization based on data-driven insights.
- Sponsoring Agency: Planning Department

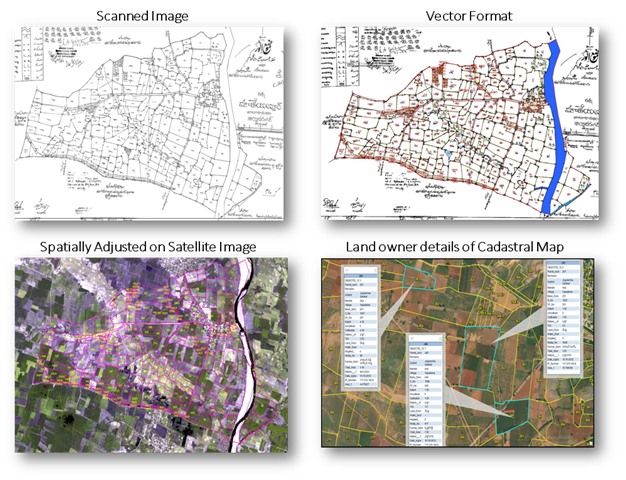

The updation of the Cadastral Land Information System (CLIS) for Telangana state on a 30 cm resolution is a significant initiative to modernize land records. This project aims to provide an accurate and comprehensive digital database of land ownership, boundaries, and other relevant information.
Objective:
- Spatial Planning: To provide accurate spatial data for urban and regional planning, infrastructure development, and environmental management.
- Land Valuation: To determine property values for taxation, compensation, and other purposes.
- Boundary Dispute Resolution: To resolve boundary disputes between neighboring landowners.
- Land Use Management: To monitor and manage land use changes, ensuring compliance with regulations and policies.
- Geospatial Data Integration: To integrate cadastral data with other geospatial datasets for broader spatial analysis and decision-making.
Survey of Land Records & Agricultural Department
Telangana State Police department is planned to mapping a total 967 Police Stations properties spared over (33) Districts of state. This project is accurate and up-to-date digital database of properties within the jurisdiction of the Police Department in GIS Environment. To represent property boundaries, owner information and relevant attributes on digital map spatially. To integrate data with existing transportation network datasets to improve route planning, asset management, and operational decision-making. To provide a reliable and user-friendly WEB-GIS platform for Police Department personnel to access, query, and analyze property-related information.
Objective:
- Crime Mapping and Analysis: Identify crime hotspots, patterns, and trends to inform effective policing strategies.
- Property Identification and Verification: Accurately locate and verify property boundaries, ownership, and details.
- Investigation and Surveillance: Utilize geo-spatial intelligence for targeted investigations and surveillance.
- Emergency Response: Expedite response times with precise location information.
- Community Policing: Engage citizens through interactive maps and online services.
Telangana State Police Department
Initially it is planned to map a total of (460) locations, (96) Bus Depots and (364) Bus Stations spread over (33) Districts of state. This project is accurate and up-to-date digital database of properties within the jurisdiction of the TSRTC in GIS Environment. Create an accurate and up-to-date digital database of properties within the jurisdiction of the TSRTC with help of GIS Environment. In order to achieve this, it is proposed. To represent property boundaries, owner information and relevant attributes on digital map spatially. To integrate data with existing transportation network datasets to improve route planning, asset management, and operational decision-making.
Objective:
- To create an accurate and up-to-date digital map of properties within the jurisdiction of the RTC.
- To spatially represent property boundaries, ownership information, and relevant attributes on the digital map.
- To integrate property mapping data with existing transportation network datasets to improve route planning, asset management, and operational decision making.
- To provide a reliable and user-friendly WEB-GIS platform for RTC personnel to access, query, and analyze property-related information
Department of Road Transport Corporation
The Telangana Police Department taken up after a long time and proposals for creating new Police Stations, Divisions, Zones have been sent to Government. As part of and newly created Police Stations have to be demarked and some of anomalies in boundaries between various police stations need to be rectified. TGRAC have been part of the work of Re-Organization of Hyderabad Police Stations, online mapping of new Police Stations/Existing Police Stations for demarcation of jurisdiction boundaries. Re-Organization of L&O Police Stations, Traffic Police Stations. Creation of New Police Stations / Divisions / Zones with help of High Resolution Satellite Image.
Sponsoring Agency:Telangana State Police Department
The Warangal Outer Ring Road project, undertaken by the Kakatiya Urban Development Authority (KUDA), aims to develop a comprehensive transportation network and alleviate traffic congestion. To facilitate this, KUDA conducted a land pooling survey utilizing Geographic Information System (GIS) technology.
Objective:
- Identify and acquire land for the Outer Ring Road project.
- Conduct a detailed survey of land ownership, boundaries, and topography.
- Determine land requirements for road alignment, interchanges, and other infrastructure.
- Ensure fair compensation for affected landowners.
KUDA Warangal.
The base data is created for the 54 ULBs of the state. As per the tentative estimation, the geographical area occupied by the ULBs is 1960 Sq.kms. There are 117 revenue villages coming under the purview of these 54 ULBs. The database is created in GIS environment, so as to make it compatible to be used as input for preparing master plans for the ULBs.
Sponsoring Agency:Commissioner&Director of Municipal Administration, Govt. of Telangana

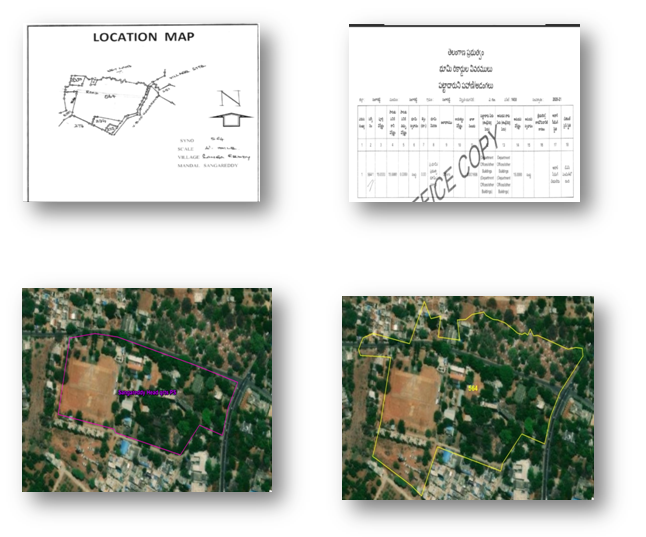

- Inventory of immovable properties of endowment department
- Geospatial mapping of the location details with co-ordinates.
- Geo-referencing of the endowment properties with respect to revenue survey numbers.
- Development of endowment land property information system for the department using geospatial technologies.
- Survey of the endowment Properties using 2-D Digital Terrain Model created using 30cm Spatial Resolution Satellite Image.
- Demarcation and fixation of Boundary of the endowment Lands/Properties in reconciliation with Revenue Records, delineation of enjoyment boundaries and identification of encroachments, vacant, lease, and litigation if any.
- Creation of accurate GIS Database for the endowment Lands/Properties, amenities and facilities within the Study area.

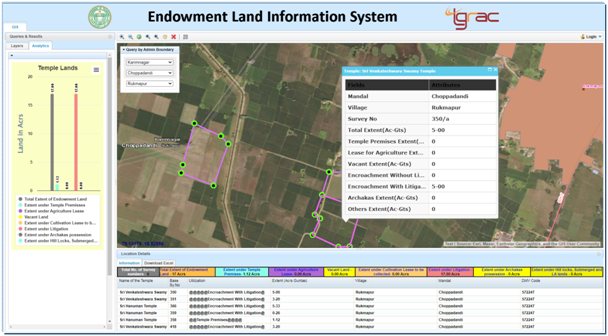

- Development of compatible Web GIS Application for the endowment Land Information System.
- Geo-coded Revenue villages maps were utilized to locate the survey numbers, where point data was depicted spatially showing location and Land particulars.
Chief Commissioner Land Administration has awarded the Spill over works of Bhu Bharati Project pertaining to Nizamabad District . Under this project TGRAC has to carryout Identification of Encroached Land Parcels and carryout Spatial, and Textual/Attribute data corrections, and generate Geo-rectified Village map.
- Spatial Correction:
- Splitting of land parcels LP and projecting them as individual (Land Parcel Map Layouts) .
- Polygons of land parcels to be converted into line feature so as to generate vertexes along the polygons for measurement of inter vertex distances.
- Vertex's to be converted to point feature so as to generate coordinates for each vertex.
- Bi-junction and Tri Junctions of the adjoining land parcels to be denoted as Alpha and Numeric's.
- Each LPM is to be provided in Poly, Line and Point features.
- Demarcation of Encroached Land parcels:
- Land Parcels subjected to encroachments are demarcated and segregated with unique symbology
- In accordance with the details provided in format ix of the land registration records corrections will be carried out both in LPM and LR simultaneously.
- Encroached LPM's are assigned new survey number and entries made into the remarks column of the LR Record.
- Textual / Attribute Data corrections: Textual / attribute information of the land registration records, LR'S will be verified with respect to corresponding LPM and final LR is prepared. Inputs: Source Data by O/o CCLA. Scales: The scale and orientation of the sketch can be altered depending upon the size of the field. The scale shall vary 1:1000 for LPM upto 2 Ha Area, and 1:2000 for upto 2 Ha area to 8 Ha area and 1:5000 for over 8 Ha area. Outputs: Final LPM to be provided on A4 size, Land Registers LRs on A3 Size and Final Village Map on A0 Size. JPEG : Input Three JPEGS of LPM, LR and Village Map Output Three JPEGS of LPM, LR and Village Map
Sponsored by Telangana State Industrial Infrastructure Corporation, Government of Telangana.
Ease of doing business in Telangana State is one of the flagship programs of Govt. of Telangana. TGRAC is providing a GIS web application on industrial infrastructure in Telangana State, through which complete information on vacant plots and allotted plots are available for all the Industrial parks spread across the state.
A prospective entrepreneur from anywhere in the world, could view the spatial location of the desired vacant plot including the plot details such as extent, cost of the plot and type of industry permitted, so as to take a decision apply online for the plot allotment. Apart from the entire industrial infrastructure available, all the nearby amenities available could be viewed such as road network, rail network, nearest airport, mandal headquarter, fire stations, etc.
Sponsored by National Remote Sensing Centre, ISRO, Department of Space, and Government of India.
Rural Development depends on assessment of the required amenities and management of the existing ones, such as Roads,Schools,Hospitals and Sanitation etc, there is an urgent need of spatial inventory of the existing assets before investing for new assets as most of the database on assets doesn’t have spatial location. The objective of this project is asset mapping, activity planning, and implementation and monitoring of development activities at Gram panchayats level.
Bhuvan Panchayat Mobile App by NRSC/ISRO would be used in this project. This App is well integrated with web portal, it supports the services of mobile mapping and in web portal supports visualization and editing A pilot study was taken up by TRAC,in Veliminedu and Pittampally Grampanchayats of Chityal Mandal, a total of 244 assets were captured, which includes assets such as, Governance, Productive, Human resources, Natural resources and Civic Amenities. The spatial location, attribute information and photograph of each asset, is processed for Geodatabase, which is further used for spatial analysis to support the efficiency of asset management. It is understood that Asset Mapping helps in planning, transparency and making quick decisions to execute the projects at Grampanchayats level. As the work is appreciated at national level it is planned to extend the Asset mapping for Mahabubnagar district,later on entire State.
